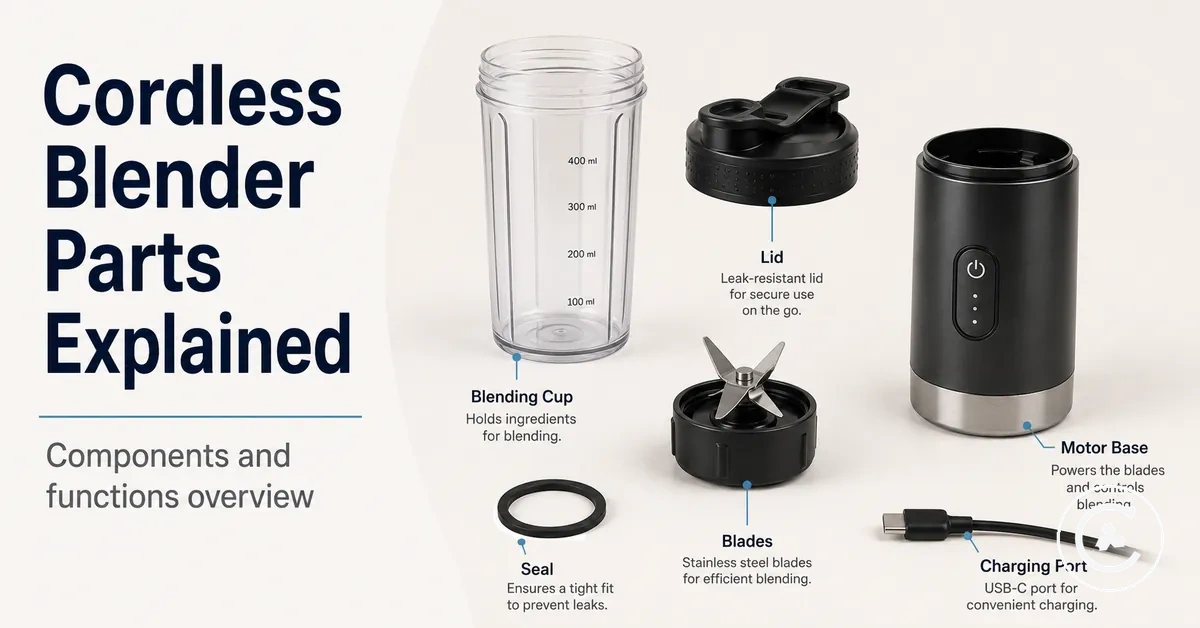

Cordless Blender Parts and Components Explained

cordless blenders are made from physical and functional parts that contain ingredients, create blade movement, support charging, and help the appliance assemble safely. Cordless blender parts can include the cup, lid, blade assembly, sealing ring, motor base, charging port, and safety lock. These components are clearer when grouped by function rather than treated as isolated accessories.

The cup and lid contain ingredients, while the sealing ring may help limit leaks at joined surfaces. The blade assembly connects blending action to the motor base, and the charging port provides the external connection used by the power system. The safety lock may depend on correct seating or alignment, so each component should be considered as part of a connected assembly.

Part design, thread pattern, contact surfaces, and replacement fit can vary by model or manufacturer. A part may be removable, replaceable, or integrated depending on the blender, so visual similarity alone does not confirm compatibility.

Each part should be understood by its role, contact point, and visible condition. This grouped approach helps separate containment parts, blending components, charging surfaces, and assembly features before replacement or failure is considered.

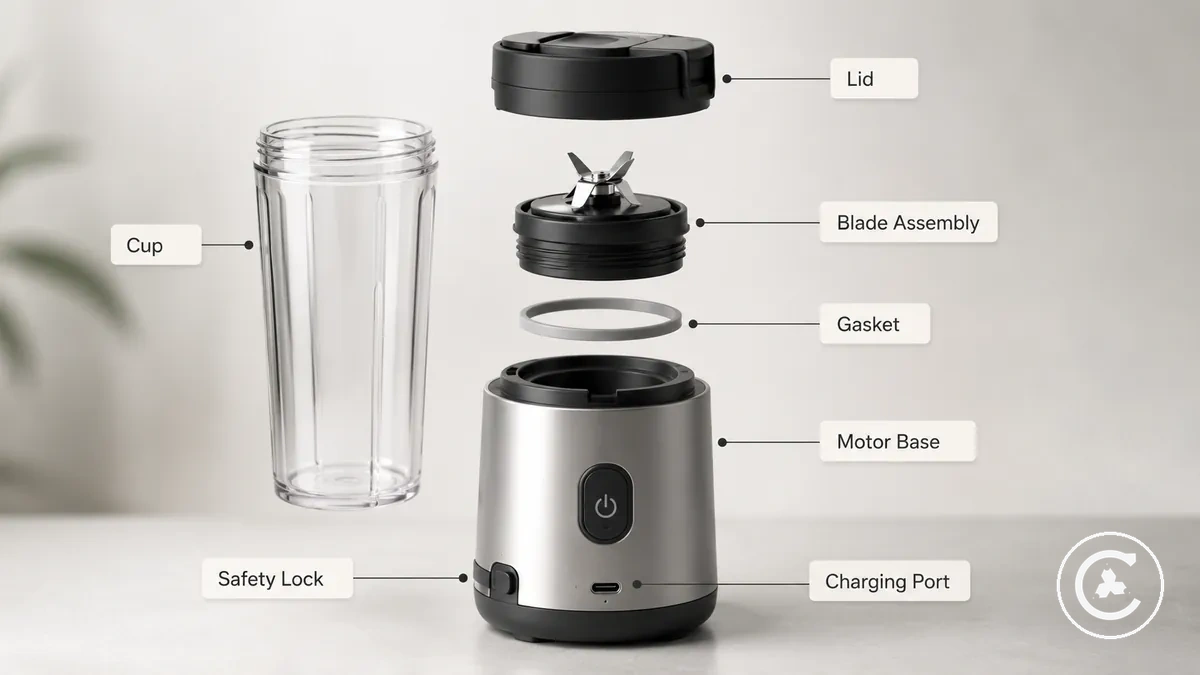

What Counts as a Cordless Blender Part

A cordless blender part is a physical component that helps the appliance contain ingredients, blend, seal, charge, or lock safely. A cordless blender part may be a removable part, a replaceable part, or an integrated component, depending on the model and its design. Physical parts are different from general blender features or operating functions.

Common removable parts include the cup, lid, and blade assembly because they are regularly handled for use and cleaning. A gasket or sealing ring may be a replaceable part when wear affects sealing, while the motor base often contains integrated components that may not be intended for routine user service. The charging port and safety lock are also physical components, although their serviceability can vary by model. Replacement availability depends on the specific product rather than the appearance of the component.

This section explains which physical components qualify as cordless blender parts rather than providing repair instructions or disassembly guidance. A part is not always a standalone accessory, and an integrated component may not be available separately. Understanding these categories makes it easier to identify the user-facing parts discussed in the following sections.

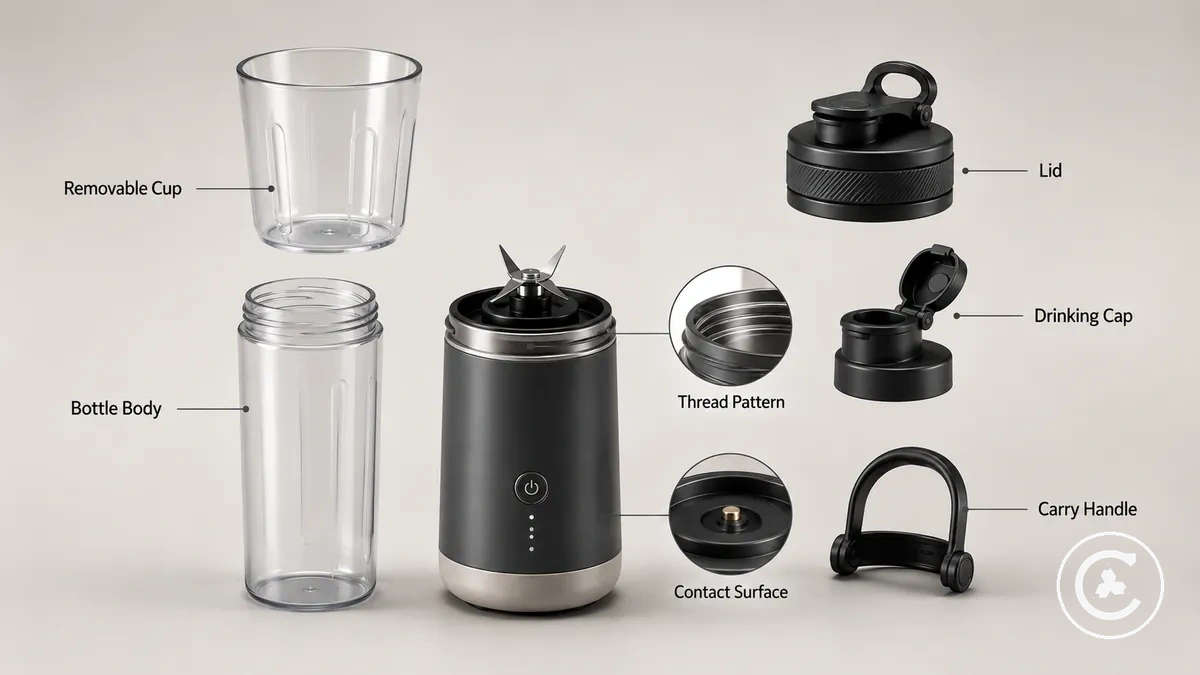

Removable Cup, Lid, and Carry Parts

When a cordless blender is filled, carried, or washed, the removable cup, lid, and carry parts are usually the components handled most often. These outside surfaces support everyday use and may show wear before internal components. They are the most frequently touched contact surfaces during normal operation and cleaning.

Removable cup, lid, and carry parts are easier to compare by their function and the fit-sensitive contact surfaces where they connect. The table below groups each part by its main role, the attribute to examine, and a common replacement concern.

Part	Main function	Attribute to check	Replacement concern
Removable cup	Contains ingredients	Measurement markings, rim, contact surface	Wear or cracks may vary by model
Bottle body	Supports handling	Thread pattern, outer shape	Visible similarity may not indicate matching fit
Lid	Seals the container	Thread pattern, gasket contact	Leak risk if sealing surfaces differ
Drinking cap	Provides drinking access	Closing surface	Cap design may vary by model
Carry handle	Supports carrying	Attachment point	Attachment style may differ
Cover	Protects an opening	Contact surface	Configuration depends on the model
Contact surface	Supports sealing	Cleanliness and condition	Wear may increase leak risk

The table highlights how each removable part has a different purpose even when two products appear similar. The condition of the thread pattern, gasket contact, and other contact surfaces can influence how parts meet during assembly. When comparing cup and lid size, consider both visible dimensions and the connecting surfaces rather than appearance alone. Visible similarity does not always mean matching fit.

For example, two portable bottles may look almost identical but use different thread patterns or lid contact surfaces. The overall shape may appear the same while the joining points differ, creating a different replacement concern without changing the external appearance.

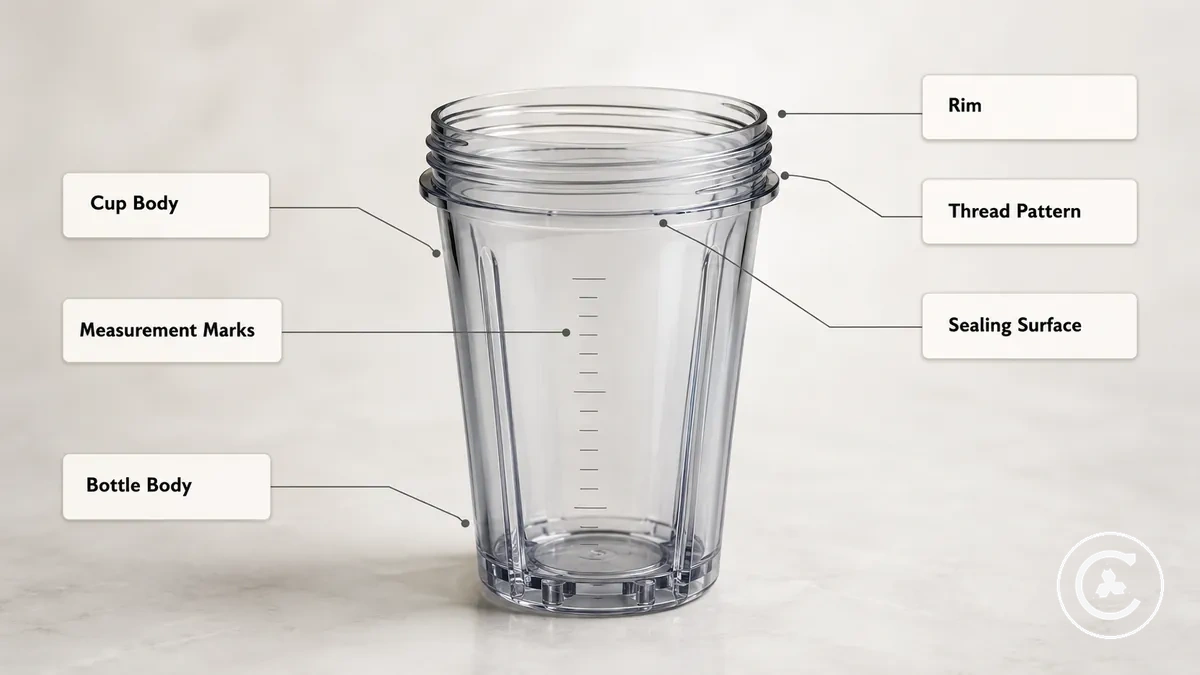

Blending cup, bottle body, and measurement markings

A blending cup is the container that holds ingredients while supporting assembly with the motor base. The bottle body, measurement markings, and visible connection points help users judge filling, handling, and alignment. The cup shape can influence containment, while the rim and thread pattern may affect base fit depending on the model.

The blending cup is easier to assess by checking its visible features before considering replacement. Measurement markings may help estimate ingredient volume when provided, while the rim and sealing surface should appear clean and in good condition for consistent gasket contact. The thread pattern, bottle body, material clarity, and base fit can vary between models, so similar-looking cups may assemble differently. Wear around the sealing surface or thread area may increase leak risk or affect assembly.

• Check measurement markings for clear visibility and intended fill guidance.
• Inspect the rim and sealing surface for wear, damage, or contamination.
• Examine the thread pattern for clean and undamaged engagement.
• Confirm that the bottle body and base fit match the intended model configuration.

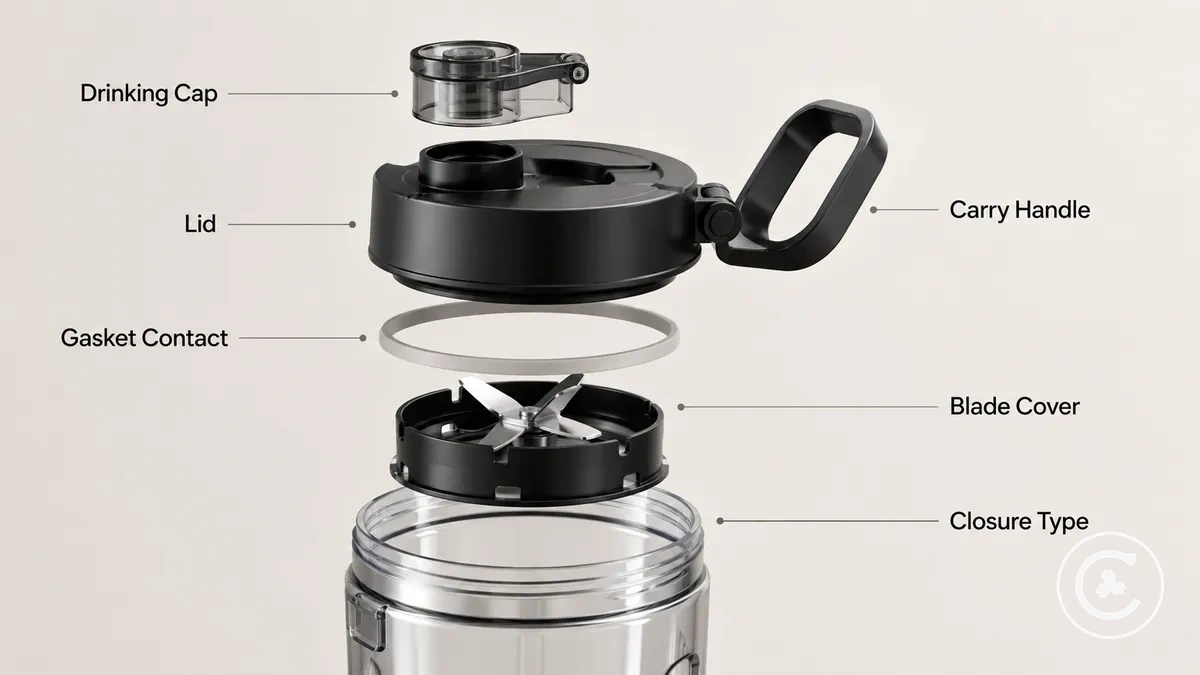

Lid, drinking cap, blade cover, and carry handle

After blending is finished, the lid-related parts determine how the container is closed, carried, and stored. The lid, drinking cap, blade cover, and carry handle each serve a different purpose, even when they are attached to the same bottle. Together they support drinking, sealing, carrying, and blade protection.

Lid-related parts differ by their closure type and contact points. Gasket contact may influence sealing, while cap design can affect how the drinking opening closes after use. The carry handle should be checked at its attachment point for wear, and a blade cover can help provide blade protection during storage when supplied for the model. Residue around the gasket contact or closure area may increase leak risk or reduce sealing consistency.

• Lid: Covers the container; check the closure type and gasket contact for proper sealing.
• Drinking cap: Opens the drinking port; inspect the cap design and closure for residue or wear.
• Blade cover: Protects exposed blades during storage; check that it fits securely when provided.
• Carry handle: Supports carrying; inspect the handle attachment for looseness or wear.

Blade, Seal, and Gasket Components

Blade, seal, and gasket components are the group of parts that most directly influence cutting action and leak control. The blade assembly processes ingredients, while the sealing ring and gasket help form a liquid barrier around the rotating blade unit. Together they should be evaluated as a shared cutting-and-sealing component cluster.

Blade, seal, and gasket components are best assessed by comparing their function, visible condition, and possible failure signs. The table below organizes the main components by the attribute to inspect, the condition to observe, and the effect or caution associated with each part.

Component	Attribute to check	Condition or sign	Effect or caution
Blade assembly	Sharpness	Dull edges or visible damage	May reduce cutting action or blending consistency
Cutter base	Attachment fit	Loose or uneven seating	Fit depends on the model and assembly condition
Blade housing	Housing fit	Visible movement or wear	May affect attachment stability
Sealing ring	Seal position	Twisting, flattening, or displacement	May reduce the liquid barrier and increase leak risk
Gasket	Material condition	Cracks, hardening, or wear	May reduce sealing performance

Sharpness supports cutting function, while seal position and material condition support sealing function. A blade assembly may continue to rotate even when reduced sharpness changes blending texture, whereas a worn sealing ring or gasket may affect leak control instead. Blade housing fit and component compatibility can vary by model, so similar-looking parts should not be assumed to match. Use safe handling whenever inspecting exposed blades or checking seals.

A small leak or a change in blending consistency may indicate that one of these components needs closer inspection, although the exact cause depends on the model and component condition. For broader information about motor and blade components, see the related performance guide.

Blade assembly, cutter base, and blade housing

The blade assembly is the local mechanism that transfers motor rotation into cutting and mixing. The cutter blades sit within the cutter base and blade housing, while the connection points help the unit engage with the appliance. Their combined condition can affect cutting movement and safe assembly.

Visible checks should stay limited to the exterior condition of the blade assembly. Blade movement may be restricted by residue buildup, while cracks in the blade housing or wear around the visible bearing area may indicate damage. Attachment fit and housing shape can vary by model, so connection points should be assessed without forcing the unit or assuming internal serviceability. Internal repair should not be assumed from a visible inspection.

• Check the cutter blades for visible damage or restricted movement.
• Inspect the cutter base and blade housing for cracks or distortion.
• Look for residue buildup around the blade unit and visible bearing area.
• Check attachment fit and connection points for stable, model-appropriate seating.
• Keep inspection non-invasive to support safe assembly.

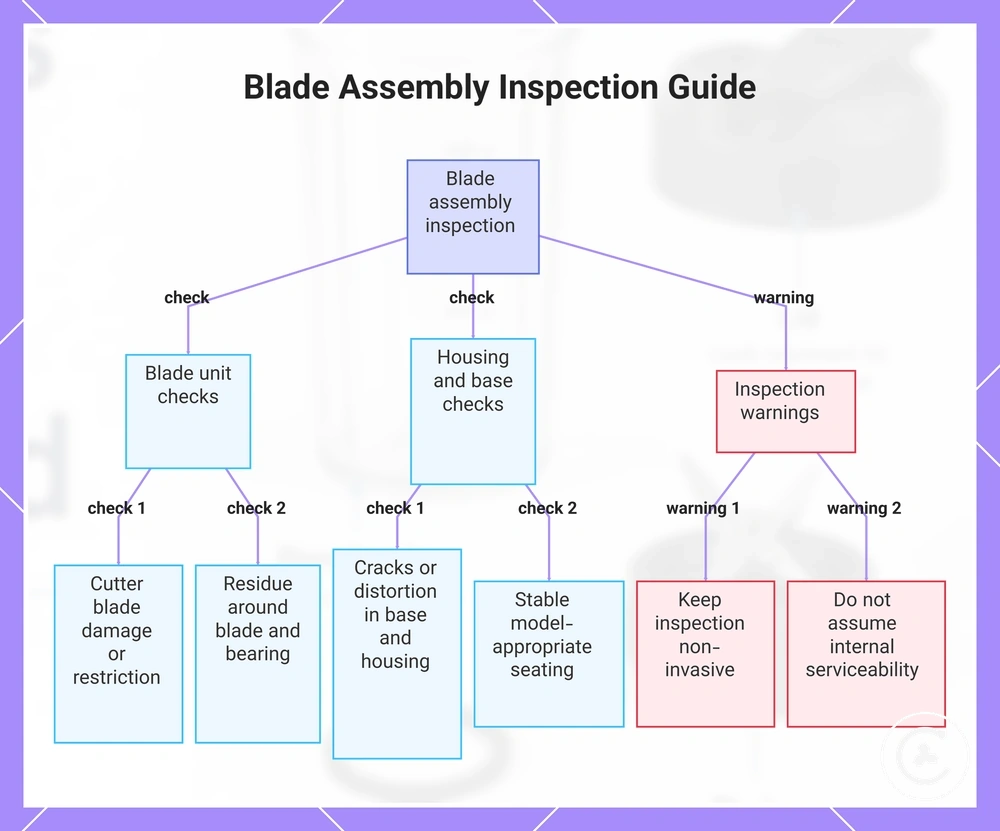

This chart shows the key inspection checks for the blade assembly, including what to check and what warnings to follow.

Sealing ring, gasket position, and leak protection

The sealing ring and gasket are flexible barriers that help limit liquid movement between the cup, lid, blade base, or motor-facing assembly. Their material condition, groove placement, and compression fit can influence how the joined surfaces seal. Correct gasket position supports leak protection, but the required placement may vary by model.

A sealing ring should sit evenly in its intended groove without visible twisting, looseness, residue, or deformation. Wear or reduced compression may weaken contact between surfaces and increase leak risk. A replacement gasket may help when the seal itself is worn, but cracks, damaged threads, or poor alignment can also cause leakage. Seal-related leaks should therefore be distinguished from non-seal causes.

• Gasket position: Uneven seating may reduce contact around the joint.
• Groove placement: A seal outside its intended groove may not compress evenly.
• Compression fit: Looseness or flattening may indicate reduced sealing contact.
• Material condition: Wear, cracks, or deformation may increase leak risk.
• Residue: Buildup around the gasket may interfere with surface contact.

Motor Base, Battery Housing, and Charging Components

The motor base, battery housing, and charging components form the lower part of a cordless blender that supports power, control, charging, and the motor connection. The motor base links the blending assembly to the powered unit, while the control area manages normal operation. Together these parts define the lower component group by its power and control role.

The motor base usually includes the connection point for the blending assembly, the power button, and the indicator area. The battery housing contains the internal power source and may be an integrated component rather than a practical replacement part. The indicator area may show operating or charging responses depending on the model and its condition. Because these parts are often integrated, sealed housings should not be opened as part of routine component inspection.

The charging port provides the contact point for the cable connection used during charging. A protective cover, when included, may help shield the port from dust or moisture while it is not in use. Charging port shape, cable connection, and cover design can vary by model, so appearance alone should not be treated as proof of compatibility. Moisture, debris, or a mismatched connection may affect charging or the condition of the charging surfaces.

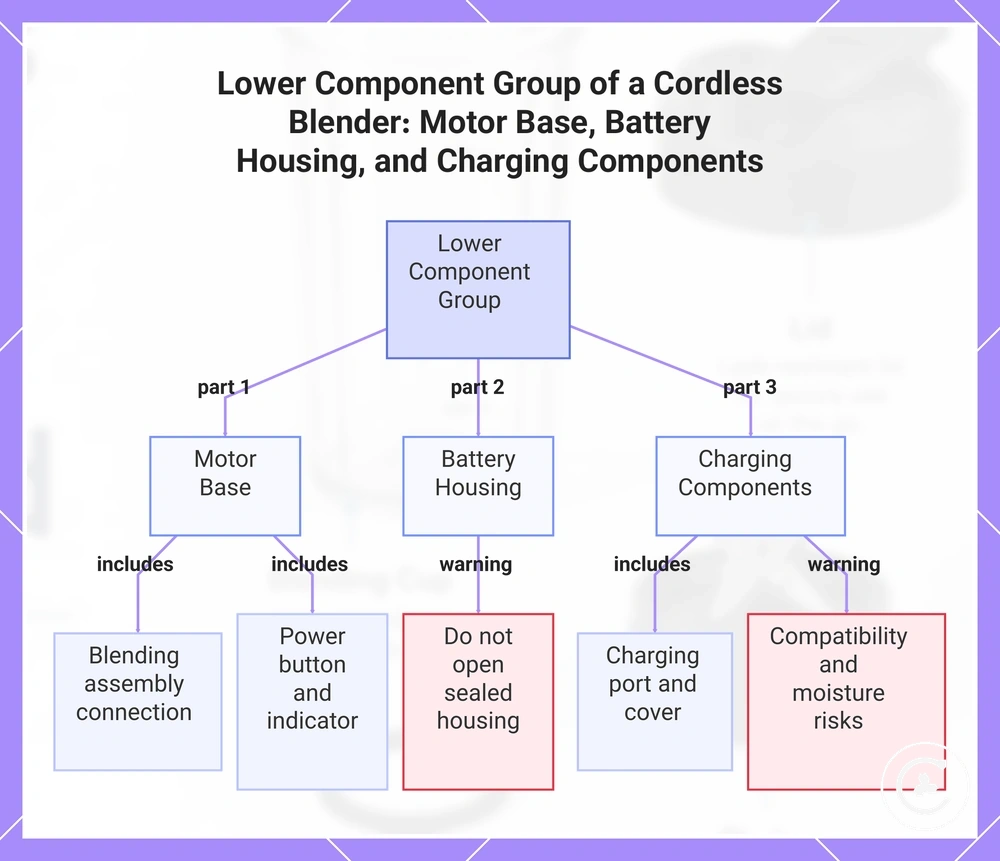

This chart shows the three main subcomponents of the lower part of a cordless blender, their key features, and important warnings about sealed housings and compatibility.

Motor base, power button, and control area

The motor base is the lower component that contains the motor, control area, battery area, and contact surface used to connect the blending assembly. The power button and indicator area are the visible controls used during normal operation. Together these parts support operation through the lower base.

Observable checks should focus on the external condition of the motor base. Base weight, housing integrity, and the contact surface should appear stable, clean, and correctly aligned for the intended model. The power button should move normally, while the indicator area may respond differently depending on the operating or charging condition. Visible damage, poor alignment, or changes to housing integrity may affect operation, but inspection should remain external without disassembly.

Charging port, cable connection, and charging cover

The charging port, cable connection, and charging cover are the visible components that connect external power to a cordless blender. The charging port receives the connector, while the charging cover, when included, helps protect the opening between charging sessions. This section focuses only on visible charging components and their condition.

Port condition, cable fit, and indicator response should be checked together because each may influence charging outcome. Debris or moisture around the charging port may interfere with the cable connection, while visible damage to the charging cover may leave the port less protected. Connector type and cable fit can vary by model, so the charging cable should match the intended port rather than relying on appearance alone.

• Port condition: Visible damage, debris, or moisture may affect the cable connection.
• Cable fit: A loose or forced fit may indicate that the connector type does not match the port.
• Charging cover: Poor position or visible wear may reduce protection around the opening.
• Indicator response: A change or lack of response may require checking the model-specific charging setup.

Safety Lock, Alignment, and Assembly Fit

Safety lock, alignment, and assembly fit are mechanisms that help a cordless blender operate only when key parts are seated correctly. Locking tabs, threads, contact points, and a lid sensor where present work together as part of the seating process. Proper alignment supports both correct assembly fit and safe operation.

Safety lock, alignment, and assembly fit checks verify that connected parts are seated correctly rather than repairing the appliance. The checklist below focuses on visible mechanical alignment, contact-point condition, and blade exposure risk.

• Safety lock: Check that the lock mechanism engages without forcing the assembly.
• Locking tabs and threads: Confirm that tabs are undamaged and threaded parts seat evenly.
• Contact points: Look for visible debris, wear, or misalignment where connected parts meet.
• Lid sensor: Where present, check that the lid reaches its intended seated position.
• Base alignment: Confirm that the cup and blade assembly sit evenly and do not leave unnecessary blade exposure.

Safety mechanisms can differ because of model variation, so assembly requirements are not identical across cordless blenders. A no-start condition may be linked to seating, alignment, or contact-point condition, but it should not be treated as proof of a specific fault. Do not force parts into position or bypass safety features when assembly fit appears incorrect. For broader guidance on safety locks and blades, refer to the dedicated safety information instead of using this section as a complete troubleshooting guide.

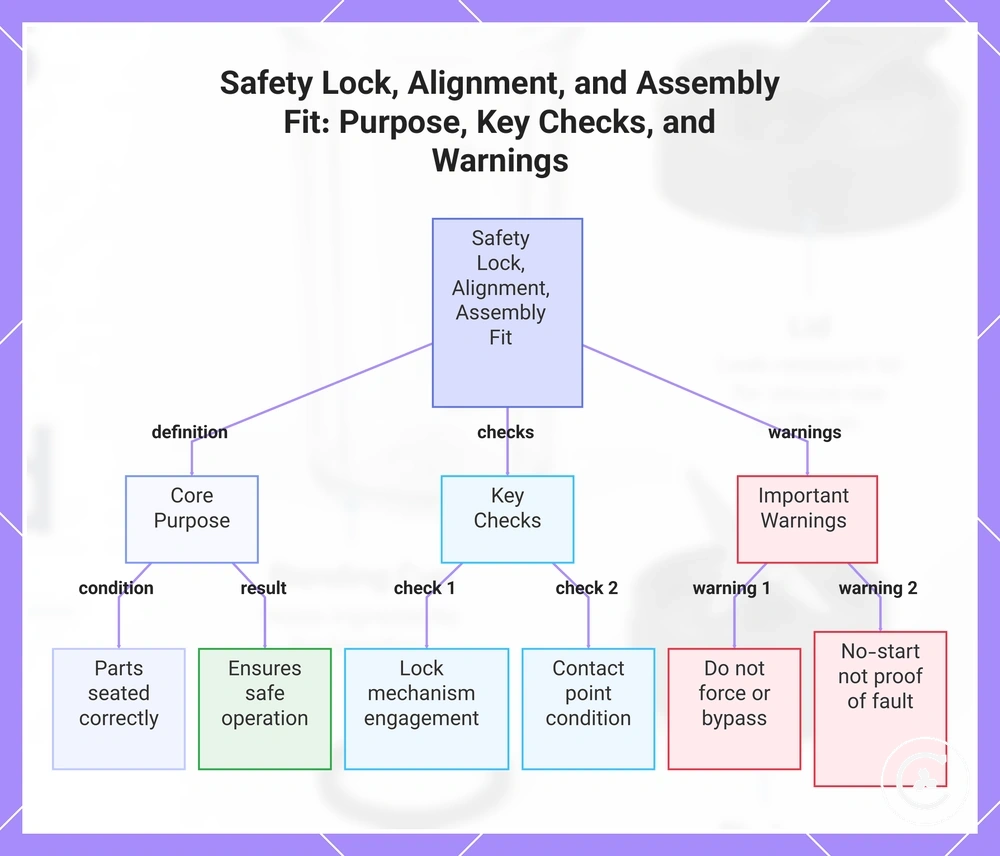

This chart shows the purpose of safety lock, alignment, and assembly fit mechanisms in cordless blenders, the main verification checks, and important warnings to follow.

Locking tabs, thread alignment, and contact points

Locking tabs, thread alignment, and contact points are local fit features that must line up before a cordless blender can seal or operate. These surfaces help connected parts reach their intended seating position. Correct alignment may support both sealing and safe-start conditions.

Visible inspection should focus on alignment position, surface cleanliness, wear, and incomplete seating. Cracked tabs, crossed threads, or dirty contacts may interrupt fit, sealing, or contact continuity depending on the model. A no-start condition can relate to these visible issues, but it does not confirm one specific fault. This subsection is limited to inspection rather than diagnosis.

• Cracked tabs: Damage may prevent locking tabs from reaching their intended seating position.
• Crossed threads: Poor thread alignment may affect fit and increase the chance of an uneven seal.
• Dirty contacts: Debris on contact points may reduce contact continuity or contribute to a no-start condition.
• Incomplete seating: A visible gap may indicate that connected parts are not fully aligned.
• Surface wear: Worn alignment points or contact surfaces may affect safe-start behaviour depending on the model.

How Cordless Blender Components Work Together

Cordless blender components work together as a containment, power, blade, and safety operating chain. The cup, lid, seal, blade assembly, motor base, battery, charging area, and safety interlock each contribute to the same working sequence. When these component relationships are correctly aligned for the model, they support the full operating chain.

Component relationships determine whether blending, sealing, and charging work correctly because each stage depends on the condition of the connected parts. For a broader introduction to how cordless blenders work, the sequence below shows how the main components connect.

1. Contain ingredients in the cup.
2. Seal the lid and seal at their contact points.
3. Seat the blade assembly and engage the safety interlock.
4. Transfer power from the battery through the motor base.
5. Use that power transfer to create blade rotation.
6. Confirm safety or charging area readiness as required by the model.

The operating chain depends on connected components rather than one part working alone. Wear, fit, alignment, or model variation may interrupt containment, power transfer, blade rotation, or charging readiness even when other parts appear normal. A visible or removable cup can affect the same sequence as an integrated battery or motor base because each component supports a linked stage. Visible, removable, and integrated parts therefore influence the same operating chain in different ways.

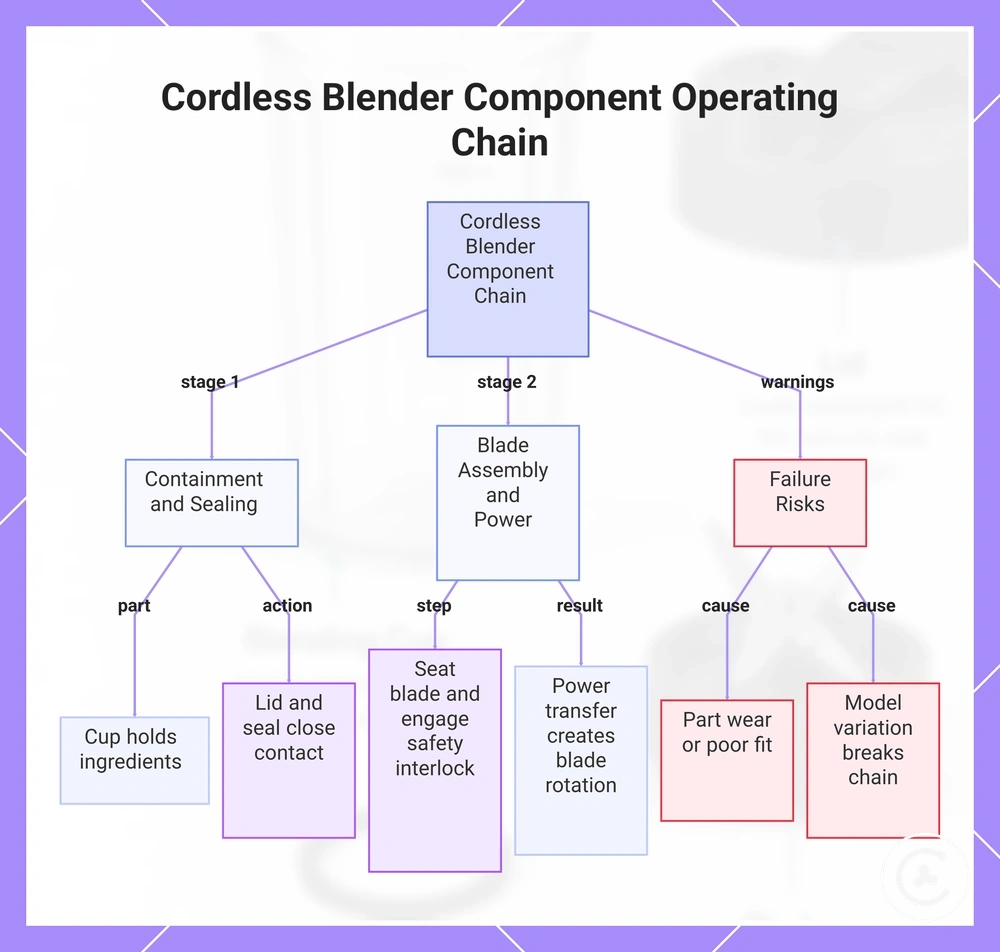

This chart shows the main stages of the cordless blender operating chain and the factors that can interrupt it.

Replacement Part Compatibility and Selection

Replacement part compatibility depends on model-specific fit rather than appearance alone. A compatible part should match the functional role and fit-sensitive features of the existing component because thread pattern, seal position, cup size, blade base, and lid style can vary by model.

Check replacement part compatibility by comparing the model, thread pattern, seal position, cup size, blade base, and lid style before making a selection. The checklist below connects each part with its main fit criterion and the risk of a mismatch.

• Cup: Match the cup size and thread pattern; the wrong fit may prevent proper assembly.
• Lid: Compare the lid style and locking features because visual similarity does not confirm part fit.
• Seal or gasket: Verify the seal position because incorrect size or placement may increase leak risk.
• Blade assembly: Check the blade base and mounting interface because a mismatch may create unsafe assembly.
• Charging cable: Confirm the connector type and cable fit because a mismatch may prevent normal charging.
• Motor base: Treat model-specific fit as essential because external shape alone does not confirm compatibility.
• Original part or generic part: Compare measurements and fit features rather than relying on generic labels.

Wrong fit can affect more than installation because connected parts work as a system. A mismatch involving the thread pattern, seal position, blade base, lid style, or charging cable may contribute to leaks, a no-start condition, or poor assembly depending on the model. Lower-risk parts may be easier to compare through simple dimensions, while high-fit-risk parts require closer checking of mounting, sealing, and locking features. Poor alignment of fit-sensitive components may increase leak risk or lead to unsafe assembly.

Select a replacement part only after comparing its visible fit criteria with the existing component and intended model. Treat connector shape, measurements, and external appearance as signals to verify rather than proof of compatibility. When the available information does not clearly confirm model-specific fit, postpone the selection until the match can be checked more reliably.

Here are product examples that may make comparison easier. Before buying, always review the compatibility criteria, essential features, and product details.

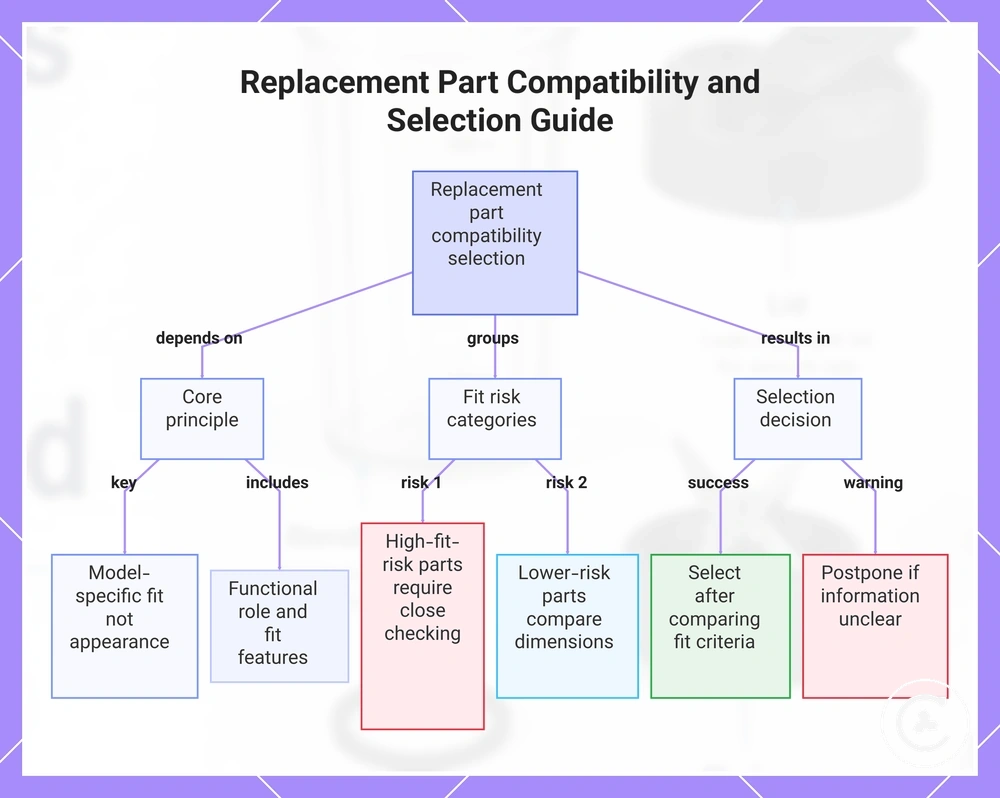

This chart shows how to select a compatible replacement part by understanding the core principle, assessing fit risk categories, and making a decision based on fit criteria.

Model-specific cups, lids, blades, and seals

Model-specific fit depends on more than visual similarity. Cups, lids, blades, and seals may differ in part shape, thread pattern, seal placement, cup diameter, and blade-base connection. Similar-looking parts may therefore use different fit surfaces or locking details.

The table below compares the local fit details that should be checked before use. Appearance alone should be treated as a signal to verify, not proof that a replacement part will fit correctly.

Part	Fit detail	Risk if mismatched	Check before use
Cup	Cup diameter and thread pattern	May cause poor seating or leak risk	Compare the rim, threads, and base connection
Lid	Lid style and seal placement	May affect sealing or safety-lock engagement	Check the closure shape, gasket contact, and locking points
Blade assembly	Blade-base connection and housing shape	May create unstable assembly or poor lock engagement	Compare the mounting surface and connection points
Seal	Gasket groove, shape, and compression fit	May reduce sealing contact and increase leak risk	Confirm the intended groove and seal placement

Original parts, generic parts, and fit limits

Choosing between original parts, generic parts, and accessory-style replacements depends on fit precision and the safety role of the component. Parts that affect sealing, blade attachment, locking, or charging usually require closer model fit than simple accessories. The part role therefore determines the acceptable fit limits and measurement risk.

The comparison below highlights when each replacement option may be appropriate. Accessory-style replacements may be reasonable when they have limited influence on sealing or operation, while parts with tight seal tolerance, blade housing risk, or cable matching requirements deserve closer verification before selection.

Original part	Generic or accessory-style part
May provide greater certainty when identified for the intended model. Usually requires fewer measurement checks when model fit is clearly specified. May be the lower-risk option for seal tolerance or blade housing fit. Should still be checked for condition, wear, and configuration.	Requires closer comparison of dimensions and connection points. Measurement risk increases when model-specific details are unavailable. Cable matching depends on connector type and charging compatibility. Avoid selection when sealing, locking, or blade attachment cannot be verified.

Seller descriptions, generic labels, or visual similarity should be treated as indicators to verify rather than proof of compatibility. A generic part may be a suitable replacement option when fit can be confirmed, but uncertainty around seal tolerance, blade housing risk, or another safety role may justify choosing a more certain alternative.

Wear, Leaks, and Part Failure Signals

Leaks, poor blending, loose fit, charging failure, or no-start behavior can indicate wear signals from different parts, but the likely cause depends on the model and component condition. These symptoms should be treated as inspection cues rather than proof that replacement is required. Part failure signals depend on part condition and model.

Failure signs should be read by symptom, likely part area, and visible condition rather than by guesswork. The table below connects each symptom with a focused inspection point.

Symptom	Likely part area	Check	What it may mean
Leaks	Worn gasket or seal area	Inspect seal placement, compression, and residue	May indicate a worn gasket, poor reseating, or a damaged sealing surface
Poor blending	Blade assembly	Inspect for dull blades, stuck blades, or residue	May indicate part wear or restricted blade movement
Loose fit	Lid or locking area	Check the loose lid, threads, and alignment	May indicate wear or incomplete seating
Charging failure	Charging port	Inspect cable fit, moisture, and visible damage	May indicate a damaged charging port or poor connector contact
No-start behavior	Safety lock or contact points	Check for a misaligned lock and visible obstructions	May indicate incomplete engagement or contact issues
Visible cracks or wear	Cup, lid, or housing	Inspect surfaces for cracks or distortion	May indicate part failure or the need for closer inspection

Leaks may relate to a worn gasket, cracks, or a loose lid, although more than one condition can produce similar symptoms. Visible cracks or flattened sealing surfaces may reduce sealing contact. Cleaning the sealing surfaces and reseating removable parts may help when residue or misalignment contributes to the leak.

Dull blades or stuck blades may reduce blending performance, especially when residue restricts movement. A damaged charging port, poor cable fit, or moisture around the connector may contribute to charging failure. A misaligned lock or affected contact points may also contribute to no-start behavior depending on the model. Before considering replacement, review cleaning removable parts to rule out residue-related issues.

Use wear signals as a guide for inspection rather than as a complete diagnostic process. Cleaning, reseating, or closer inspection may resolve condition-related issues, while visible damage or persistent part failure signals may indicate that replacement is an appropriate next step. The suitable action depends on the affected part, its condition, and the model.
